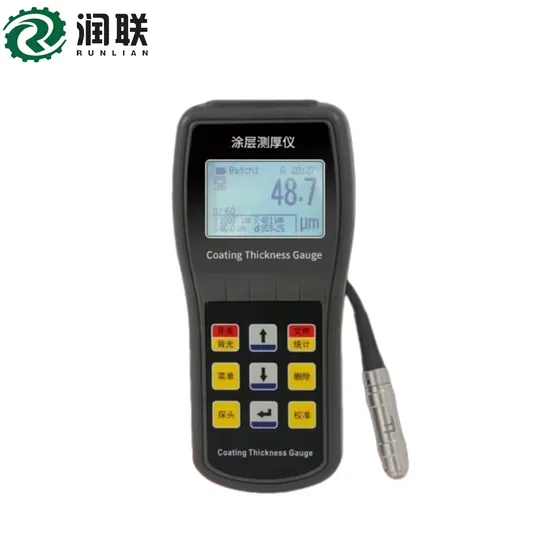

Portable Layer Thickness Measuring Instrument

• Overview
• Product Description
• Product Parameters
• Features:

Overview

Basic Info.

Model NO.	201RL
Type	V Block
Material	Granite
Measurement Object	Squareness
Range	0～500mm
Resolution	0.01mm
Precision	0.05mm
Measure Method	Automatic
Accuracy	A
Precision Measuring Device	Precision Measuring Device
Certification	CE
Customized	Non-Customized
Transport Package	Box
Specification	customizable
Trademark	customizable
Origin	China
HS Code	9031809090
Production Capacity	50000PCS/Year

Packaging & Delivery

Package Size10.00cm * 10.00cm * 25.00cm Package Gross Weight10.000kg

Product Description

The coating thickness gauge can non-destructively measure the thickness of non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) and non-magnetic coatings on magnetic metal substrates (such as steel, iron, alloys and hard magnetic steel, etc.) The thickness of the non-conductive coating (such as enamel, rubber, paint, plastic, etc.) on the metal substrate (such as copper, aluminum, zinc, tin, etc.). Coating thickness gauge has the characteristics of small measurement error, high reliability, good stability and easy operation. It is an indispensable testing instrument for controlling and ensuring product quality. It is widely used in manufacturing, metal processing industry, chemical industry, Commodity inspection and other inspection fields.

1.Using two thickness measurement methods, magnetic and eddy current, it can measure non-magnetic properties on magnetic metal substrates.The thickness of the covering layer can also measure the thickness of the non-conductive covering layer on the non-magnetic metal substrate; 2.Split (the sensor and the instrument are connected by wires), dual-purpose (F type and N type in one); 3.Has two measurement methods: continuous measurement method (CONTINUE) and single measurement method(SINGLE); 4.With statistical functions: average value (MEAN), maximum value (MAX), minimum value (MIN), Number of tests (NO.), standard deviation (S.DEV); 5.With storage function: can store 500 measured values.

Product Description

Product Parameters Features:
